selfCIRC LOCKER
Working in conjunction with ILS circulation rules and staff configurations, selfCIRC LOCKER provides patrons with 24/7 access to holds pickup and item return.
What makes selfCIRC LOCKER different? Our locker system works with the ILS from start to finish. Direct ILS integration means patrons and staff have one workflow for reserving holds. The remote locker is just one more holds pickup location in the catalog for patrons—and the locker space is automatically reserved as soon as patrons select the locker as their pickup location. Items don't check out until they're checked out by the patron.
We'd love to talk with you about the other unique ways in which our selfCIRC LOCKER system works with your ILS to fulfill holds across your community.
ILS Connected
selfCIRC LOCKER’s configuration and reporting tools work in tandem with the ILS. The locker is just another holds pickup location that patrons can select.
Inside & Outside
Powder-coated steel, IP67 touchscreen, and optional exterior awning protect the patron’s experience.
Web-Based Control
Manage selfCIRC LOCKERS from any PC or tablet with ac-cess (or remote access) to the library network.
Build Each Locker to Fit Your Needs
Step 1: Choose Your Control Console (CC-1 or CC-2)
Every selfCIRC LOCKER kiosk requires one CC-1 or CC-2 control console.
Each CC-1 or CC-2 control console can support up to 144 locker reservation spaces. CC-1 and CC-2 consoles include the following:
- A-size and B-size lockers with tamper-proof doors
- Touchscreen (PCAP, waterproof, outdoor-approved; see specs for more details)
- Windows IoT Enterprise LTSC
- 2-D barcode imager; reads print or digital (e.g. cell phones)
- Security camera; if the library decides to enable the camera, it will log an image of each locker interaction
- Return bin (CC-2 only)
+ Returns Bin)
Step 2: Add Locker-Only Consoles as Needed (LO-1 and LO-2)
Tech Logic can install additional LO-1 and LO-2 consoles onto the library’s selfCIRC LOCKER kiosks at any time, to fit the library’s evolving needs and strategies.
LO-1 and LO-2 consoles include the following:
- A-size and B-size lockers with tamper-proof doors
- C-size lockers with tamper-proof doors (LO-2 only)
A-Size
Storage Space:
Height 4.875”
Width 16”
Depth 24.5”
B-Size
Storage Space:
Height 10.5”
Width 16”
Depth 24.5”
C-Size
Storage Space:
Height 14.63”
Width 16”
Depth 24.5”
+ Returns Bin)
Deploy Your Lockers Indoors or Outdoors
Made of powder-coated steel and equipped with IP65/NEMA6P touchscreens, selfCIRC LOCKERS are ready to serve where your community needs them. selfCIRC LOCKER systems can include an exterior awning with motion-activated LED lights. This setup helps patrons stay safe and comfortable.
The lockers should always be placed out of direct precipitation.

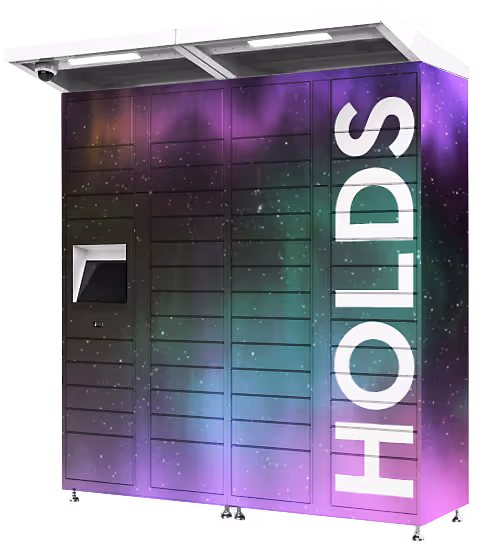

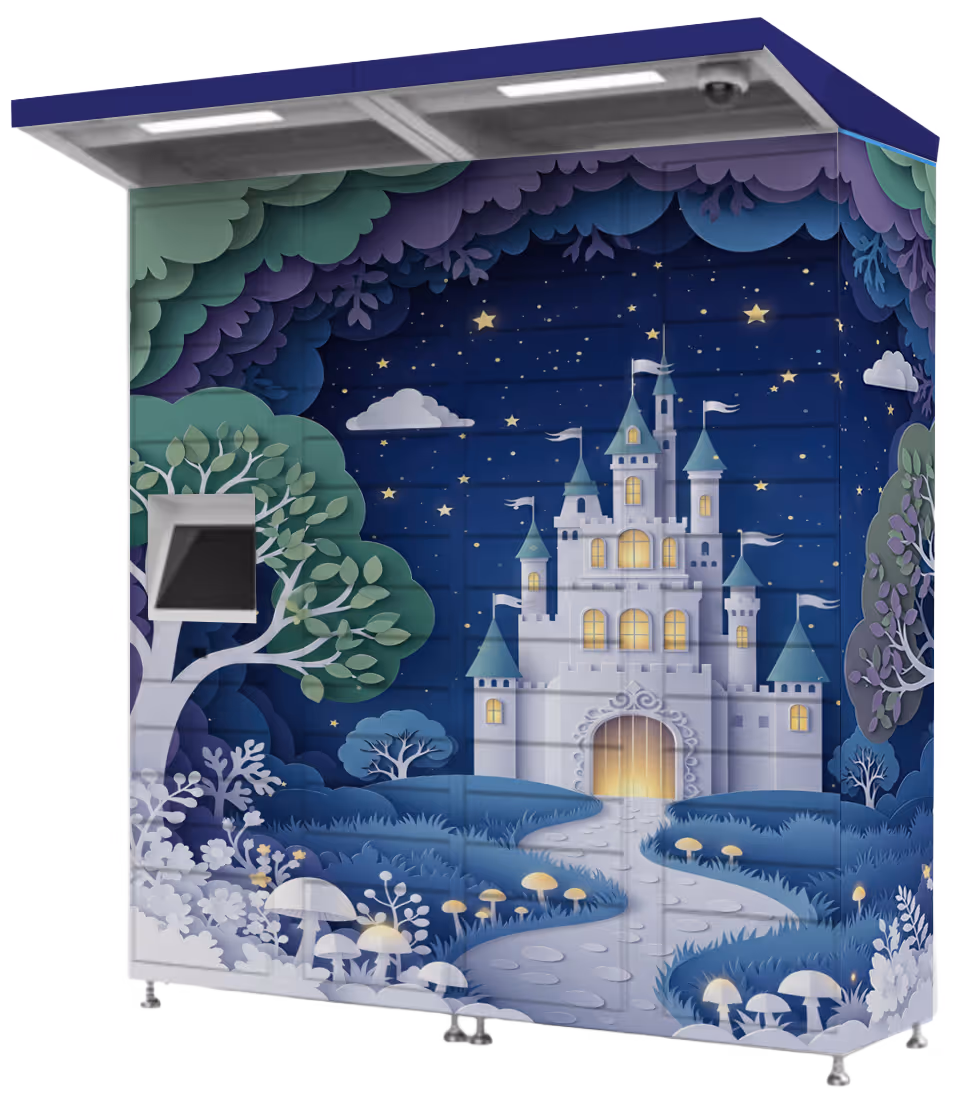

Personalize Your Lockers
The Sky’s The Limit
Holds pickup lockers are great platforms to showcase your library’s personality, build engagement throughout your community, and raise awareness for your services.
A selection of various standard paint colors are already included with our lockers. Or, we can apply custom colors or vinyl wrapping according to your custom design (quoted). Let’s make your selfCIRC LOCKER systems a source of inspiration for your community!
Intuitive Management, Streamlined Fulfillment
Staff can manage holds pickup lockers from any PC with access (or remote access) to the library network. Ask us about how our software makes it EASY for library staff to manage lockers and fulfill hold requests.
Projective Capacitive (PCAP)
IP67/NEMA6P
Operating Temperature Range: -22°F ~ 185°F (-30°C ~ 85°C)
Optical Bonding
Anti-Reflective and Anti-Fingerprint
Long-Life LED backlight
FCC, CE, ROHS Compliant; ETS Certified
Supported Resolution: 1920 x 1080
Various locker layout and size configurations are available.
System is modular for potential future expansion.
Options
Returns bin
Ninety-degree (90o) corner
Exterior awning
Tech Logic’s baseCAMP, included at no additional cost for Tech Logic customers, is a web-based application that empowers library staff to manage Tech Logic systems and access statistical reports—all from any PC or tablet with access (including remote access) to the library network.
